Understanding the Basics: What Does VRV/VRF Mean?
Variable Refrigerant Volume (VRV) and Variable Refrigerant Flow (VRF) refer to advanced HVAC systems that regulate refrigerant flow to multiple indoor units, allowing precise temperature control in different zones of a commercial building.
VRV vs VRF: Are They the Same?
Yes, the terms VRV and VRF refer to the same technology. “VRV” is a trademarked term by Daikin, while “VRF” is a generic industry term. Both describe systems that vary the flow of refrigerant depending on the heating or cooling demands of individual zones.
Origins and Trademark (Daikin’s Role)
Daikin introduced VRV technology in 1982, coining the term as part of its proprietary system. Since then, other manufacturers have developed similar systems, which are referred to in the market as VRF systems.
Common Use in Commercial HVAC Vocabulary
While HVAC professionals may use VRV and VRF interchangeably, product documentation and manufacturer literature often stick to one based on branding. Commercial facility managers typically refer to these systems as VRF.
Source: https://lightningmechanicalservice.com/
Core Components of a VRV/VRF System
Outdoor Units
These are the central hubs of a VRF system and house the compressor(s). They modulate refrigerant flow based on real-time load demands from multiple indoor units.
Indoor Units and Zone Distribution
VRF systems can connect dozens of indoor air handlers, each serving a specific room or zone. These units respond to zone-specific temperature setpoints.

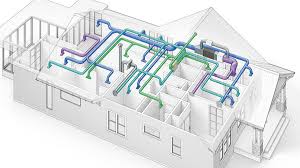

Refrigerant Piping Network
A VRF system uses a network of small-diameter copper refrigerant pipes that run between the outdoor unit and each indoor unit. The system supports long piping lengths and vertical separation, ideal for high-rise buildings.
Inverter Compressors
The compressor is equipped with inverter technology that adjusts its speed based on demand, ensuring efficient part-load operation and significant energy savings.
Control Systems and Interfaces
VRF systems integrate with centralized controls, touch-screen interfaces, mobile apps, and building management systems to allow real-time monitoring and diagnostics.
How a VRF System Works Step by Step
Load Demand Sensing and Compressor Response
Each indoor unit monitors its room conditions and sends signals to the outdoor unit. The compressor adjusts its speed to deliver only the refrigerant needed.
Zoning and Simultaneous Heating/Cooling
Some VRF systems (heat recovery types) can provide cooling in some zones and heating in others simultaneously. This is ideal for buildings with diverse usage patterns.
Heat Recovery vs Heat Pump VRF
- Heat Pump VRF: All zones are either cooling or heating at the same time.
- Heat Recovery VRF: Allows simultaneous heating and cooling using a branch selector or heat recovery box.
Modulating Refrigerant Flow to Zones
Electronic expansion valves (EEVs) control the refrigerant flow to each indoor unit, adjusting to meet the specific load of each zone.
Real-Time Control via BMS or Local Interface
Users can control the system via wall-mounted thermostats, centralized controllers, or integration with a BMS platform.
Key Advantages for Commercial Buildings
Energy Efficiency and Operational Cost Savings
VRF systems deliver energy only where it’s needed. Inverter technology avoids frequent starts/stops, reducing energy consumption and peak demand charges.
Space-Saving and Flexible Installation
The small footprint of refrigerant piping and compact indoor units makes VRF ideal for buildings with limited mechanical space.
Zonal Comfort and Customization
Occupants can set different temperatures for different rooms, improving comfort and reducing complaints from tenants or employees.
Quiet Operation for Work Environments
Indoor units are quiet and non-disruptive, making them suitable for offices, conference rooms, and classrooms.
Integration with Building Management Systems (BMS)
Most modern VRF systems offer BACnet or Modbus compatibility, allowing seamless BMS integration for centralized control and energy tracking.
Typical Commercial Use Cases for VRV/VRF Systems
Office Buildings and Corporate Campuses
Multi-zone control makes it easy to accommodate different departments or meeting room needs.
Hotels and Hospitality
Each guest room can be individually controlled without affecting other rooms, and energy is saved when rooms are unoccupied.
Hospitals and Healthcare Facilities
Temperature and humidity control are essential for patient care areas, and VRF systems offer precise control with minimal noise.
Educational Institutions
Classrooms, labs, and administrative offices benefit from customizable settings and energy-efficient performance.
Mixed-Use Developments and Retail Centers
VRF is ideal for properties with retail spaces, restaurants, and apartments that require independent operation and billing.
VRF vs Other Commercial HVAC Options
VRF vs Chilled Water Systems
VRF systems are easier to install, require no chillers or cooling towers, and offer better part-load performance. However, chilled water may still be more suitable for very large buildings with central plant operations.
VRF vs Traditional Split DX Systems
Split DX systems are limited in zoning and energy efficiency. VRF provides far more flexibility and control for large and complex layouts.
VRF vs Rooftop Units (RTUs)
RTUs are bulkier, noisier, and often require ductwork. VRF offers ductless or low-profile ducted options, with much higher efficiency.
Decision Criteria for Facility Managers
Key factors include energy goals, building size, zoning needs, ROI, tenant preferences, and existing mechanical infrastructure.
Design and Installation Considerations
Load Calculations and Zoning Design
Proper load analysis ensures that each indoor unit is appropriately sized and placed. Over- or under-sizing leads to inefficiencies and comfort issues.
Piping and Line Length Limits
Manufacturers provide strict guidelines on maximum piping lengths, height differences, and the number of connections. These must be followed for warranty validity.
Manufacturer-Specific Guidelines
Each OEM (Daikin, Mitsubishi, LG, etc.) has unique control logic, piping rules, and commissioning procedures. Design teams must be trained on these specifics.
Need for Factory-Trained Technicians
Installation and commissioning must be handled by certified technicians to ensure proper oil balancing, system vacuuming, and software setup.
Common Myths and Misconceptions About VRF Systems
“Too Complex to Maintain”
While advanced, VRF systems are designed for diagnostics and remote monitoring. Properly installed systems require less maintenance than traditional setups.
“Only for New Construction”
VRF is frequently used in retrofit applications due to its minimal ductwork and ability to reuse existing penetrations or chases.
“Not Suitable for Cold Climates”
Modern VRF systems operate efficiently even in extreme cold. Some models provide 100% heating capacity down to -13°F (-25°C).
Is VRV/VRF the Right Choice for Your Commercial Building?
Questions to Ask During Planning
- How many zones require independent control?
- What are your energy goals and budget?
- Is there a need for simultaneous heating and cooling?
- Do you need BMS integration?
Budgeting and ROI Expectations
While upfront costs are higher than split systems, VRF typically offers ROI within 3–5 years through energy savings, reduced maintenance, and occupant satisfaction.
Maintenance Planning and Lifecycle Cost
With proper maintenance (filter cleaning, system checks), VRF systems can last over 15 years with minimal performance degradation.
Final Thoughts and Next Steps
Consultation With a VRF Specialist
If you’re considering VRF for your next project, consult with a licensed contractor who specializes in system design, zoning strategy, and manufacturer compliance.
Getting a Design Proposal or Quote
An accurate proposal requires a site visit, blueprint review, and detailed load analysis. Expect a preliminary estimate followed by a full design package.
Manufacturer and Product Support Network
Work with OEM-certified partners to ensure priority technical support, extended warranties, and system longevity.
